Galvalume Coil
Phone：+86 18963509455
WhatsApp：+86 18963509455
Email：sdlh@sdlianhesteel.com
INQUIRY NOW
CONTACT US
PRODUCT DESCRIPTION

         Aluminum zinc plated sheet has strong corrosion resistance, with a normal service life of up to 25 years, which is 3-6 times longer than galvanized sheet, and is suitable for stainless steel. The corrosion resistance of aluminum zinc plated plates comes from the maintenance function of the aluminum barrier layer and the dedicated maintenance function of zinc. When zinc is used for dedicated maintenance in cutting edges, scratches, and coating scratches, aluminum forms an insoluble oxide layer, demonstrating the barrier maintenance function. Aluminum zinc alloy steel coils have been subjected to outdoor exposure tests in various atmospheric environments for over 20 years, confirming that the edge cutting maintenance function of 55% aluminum zinc plated steel plates is better than that of galvanized steel plates and 5% aluminum zinc plated steel plates.

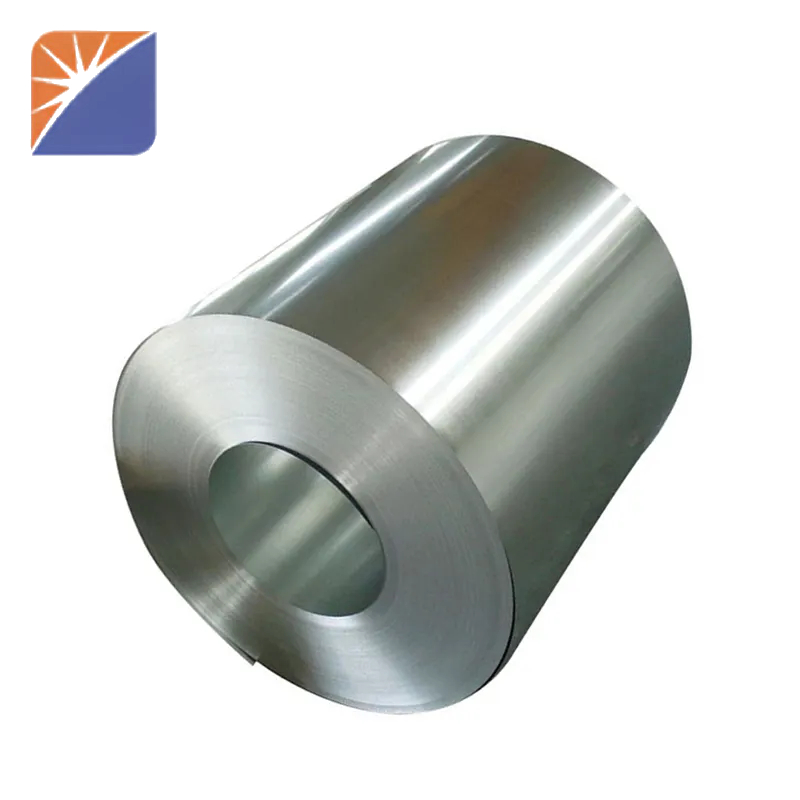

Product Name Galvalume Steel Coil
Product information Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.
Technical StandardEN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Steel GradeDC51D+AZ, DC52D+AZ, DC54D+AZ, DC53D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S450GD+AZ, S550GD+AZ
TypeCoil/Sheet/Plate/Strip
Thickness0.12-6.00mm,or customer's requirement
Width600mm-1500mm,according to customer's requirement
Type of CoatingCold rolled & Hot rolled
Al-Zn coating20-275g/m2
Surface TreatmentDRY,OIL,Chromate,Anti-finger print,Gr-free,etc
ID508mm/610mm
Coil Weight3-20metric ton per coil
PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by seven steel belt.or according to customer's requirement
ApplicationGalvalume is primarily used to protect iron-based alloys that are prone to rust. Galvalume-coated steel is better able to resist oxidation than plain carbon steel because the zinc and aluminum protect the underlying steel from the environment
Export marketEurope,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc
MOQ1 Tons, more quantity price will be lower

PRODUCT SHOW


APPLICATION

应用 (3).jpg

PACKAGE

卷 (2).jpg

FAQ

Q: Are you a trading company or a manufacturer?
a: Yes, we are manufacturer, not agent. We have our own factory, located in Shandong, China. We have the leading force in producing and exporting carbon steel galvanized steel pipe. We promise, we're what you want. welcome to contact us!
Q: What is the quality of your products?
a: We have high quality and best products, our products get some good feedback from customers around the world. Once you get our product, there are some issues in guarantee, we will provide help in the first place.

Q: How long is your delivery time?
a: If the goods are in stock, it is usually 5-10 days. Or 15-20 days, if the goods are not in stock, it is based on the quantity.

Q: Do you provide samples? Is it free or extra?
a: Yes, we can provide samples free of charge, but do not pay freight.

Q: Welded steel pipe be subject to inspection 3?
a: Yeah. BV,SGC are all acceptable.
